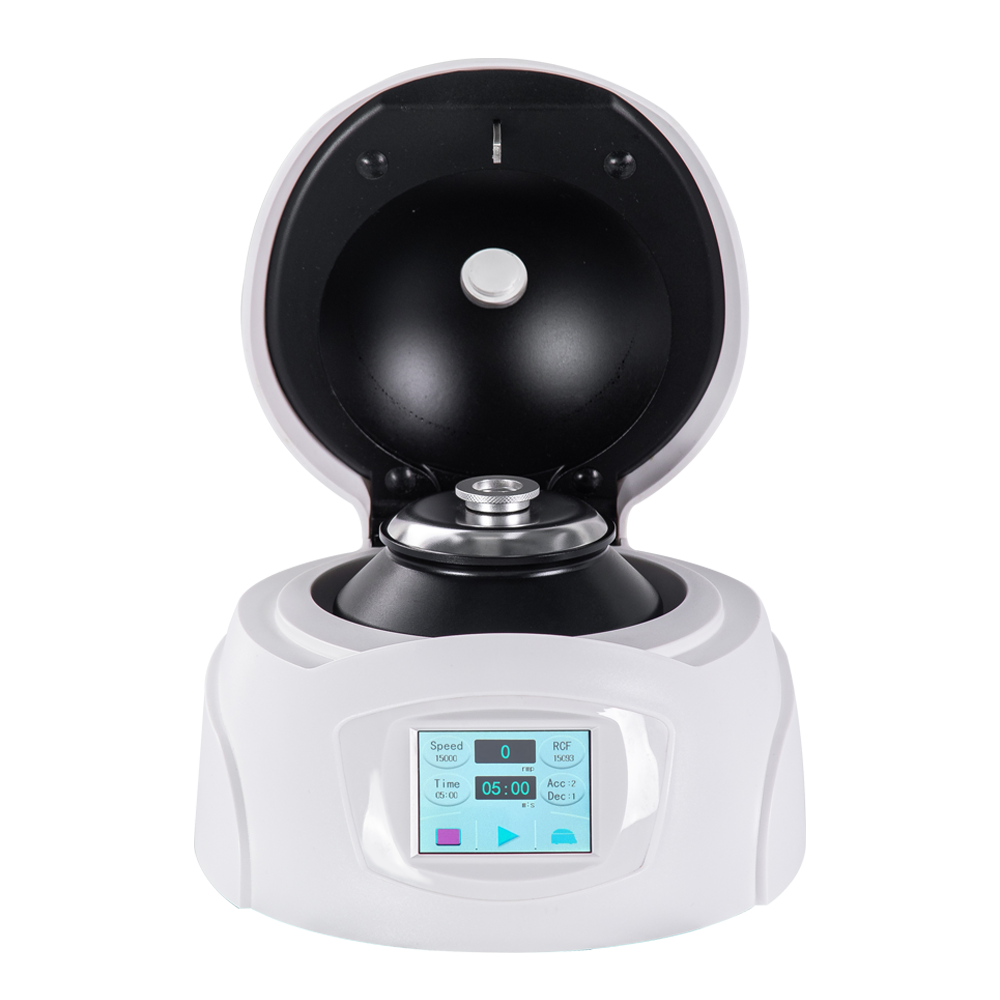

High Speed Centrifuge
H15S / H16S
Features
Temperature rise ≤ 6℃.
LCD resistive touch screen.
Brushless DC motor, maintenance free.
Rapid accelerate to max speed in 10s
(speed rate adjustable).
Automatic conversion between RPM and RCF.
Intelligent door lock and damping door open.
Super-hard aluminum alloy inner cover
makes operation safer and internal air outlet
can quickly dissipate heat.
Magnetic self-adsorbing stainless steel rotor lid.
Technical Data
Model: H15S / H16S.
Max Speed: 15000rpm / 16500rpm.
Max RCF: 15093xg / 18262xg.
Capacity: 12×1.5/2ml; 8x5ml;
3×8×0.2ml PCR strip.
Speed Accuracy: ±10rpm.
Time Setting: 1s ～ 99m59s / Short spin.
Noise: ≤56dB(A).
Power Supply: 100～240V 3A.
Dimension: 240 x 220 x 170mm.
Weight: 3.8kg.
Features
Compact design, light weight.
Adjustable run time, 1s ～ 99m59s.
800rpm to highest rpm is adjustable.
Automatically stop spinning when lid is open.
BLDC motor drive, stable and low noise.
Can stop spin in 3 seconds,
saving experiment time.
Wide range power input:100V to 240V.
Three in one rotor: 8×1.5/2ml + 6×0.5ml
+ 2x8x0.2ml, no need to change rotor.
Optional rotor for 6 PCR strips.
Technical Data
Model: Mini-6K / Mini-7K / Mini-10K.
Max Speed: 6000rpm / 7500rpm / 10000rpm.
Max RCF: 2200xg / 3450xg / 6100xg.
Capacity: 8×1.5/2ml + 6×0.5ml
+ 2x8x0.2ml (3 in 1 rotor).
Optional rotor for 6 PCR strips (Mini-6k, Mini-7k).
Time Setting: 1s ～ 99min59s.
Noise: ≤52dB(A) / ≤52dB(A) / ≤57dB(A).
Power Supply: AC100 ～ 240V, 50/60HZ.
Dimension: 200 x 170 x 130mm.
Weight: 1.2kg.

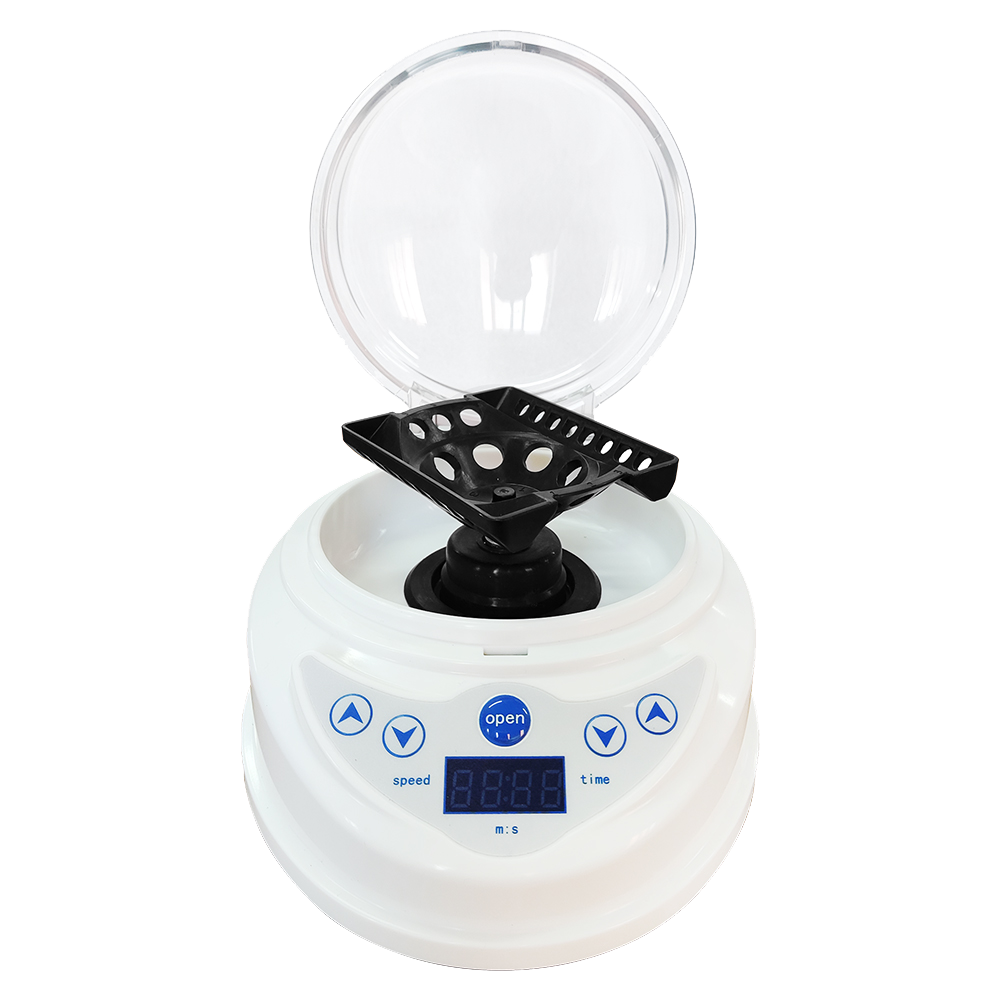

Mini Centrifuge
Mini-6K / Mini-7K / Mini-10K

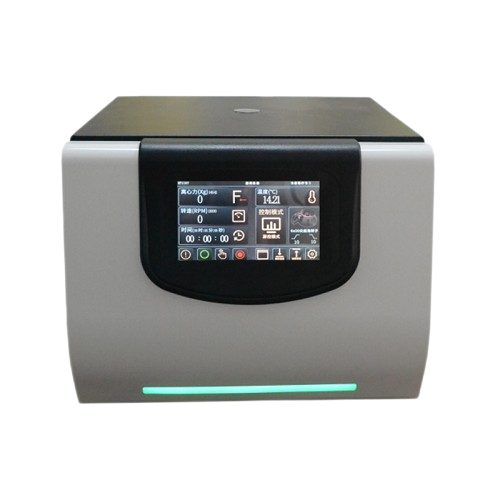

Low Speed Centrifuge
7104T
Features
7-inch LCD touch screen and steel housing.
Fluorosilicone rubber sealing and steel chamber.
Internal air outlet can quickly dissipate heat.
Micro processor control, high torque BLDC motor.
Imbalance, wrong operation, over temperature,
overspeed, overcurrent, and overvoltage protection.
Intelligent door lock and damping door open,
allowing one-button and manually open.
Up to 10 gears acceleration / deceleration.
Up to 99 sets of programs, with parameters auto saved, modified during operation without stop.
Short spin, timing, differential timing, density,
and gradient centrifugation function.
Technical Data
Model: 7104T.
Max Speed: 4000rpm.
Max RCF: 2656×g.
Capacity: 18×10ml; 24×10ml; 12×15ml;
8×20ml; 12×20ml; 6×50ml; 4×50ml; 4×100ml.
Optional rotor for cytosmear 12 slots.
Speed Accuracy: ±10r/min.
Time Setting: 1s ～ 99h59min59s / Short spin.
Noise: ≤60dB(A).
Power Supply: AC 220V 50Hz.
Power Consumption: 0.2kW.
Dimensions: 350 × 460 × 280mm.
Weight: 22 kg.
Features
Gerber centrifugation method for hygiene
conditions of milk and dairy products
consumes less time and organic reagents
during the test, suitable for rapid testing in
the production process, measurement and
analysis of fat in milk and dairy products.
With heating and thermostat functions,
the centrifuge can maintain at temperature
higher than 50℃, which not only reduces
the time of sample water bathing,
but also renders the test results more reliable.
As a common instrument for dairy product
testing, the benchtop milk fat centrifuge is
suitable for physical and chemical testing of
dairy products in food industry.
Technical Data
Model: TLW5R / TLW5.
Max Speed: 1500rpm.
Max RCF: 420×g.
Capacity: 8 Gerber butyrometers.
Speed Accuracy: ±10r/min.
Timer Setting: 1min ～ 99h59min59s / Short spin.
Temperature Range: Room temperature ~ +65°C (no heating for TLW5 ).
Control: Micro processor control.
Motor: High torque BLDC motor.
Noise: ≤60dB(A).
Power Supply: AC 220V, 50Hz.
Power Consumption: 1.5kW / 0.4kW.
Dimensions: 415 × 520 × 330mm.
Weight: 35kg.
Milk Fat Centrifuge
TLW5R / TLW5

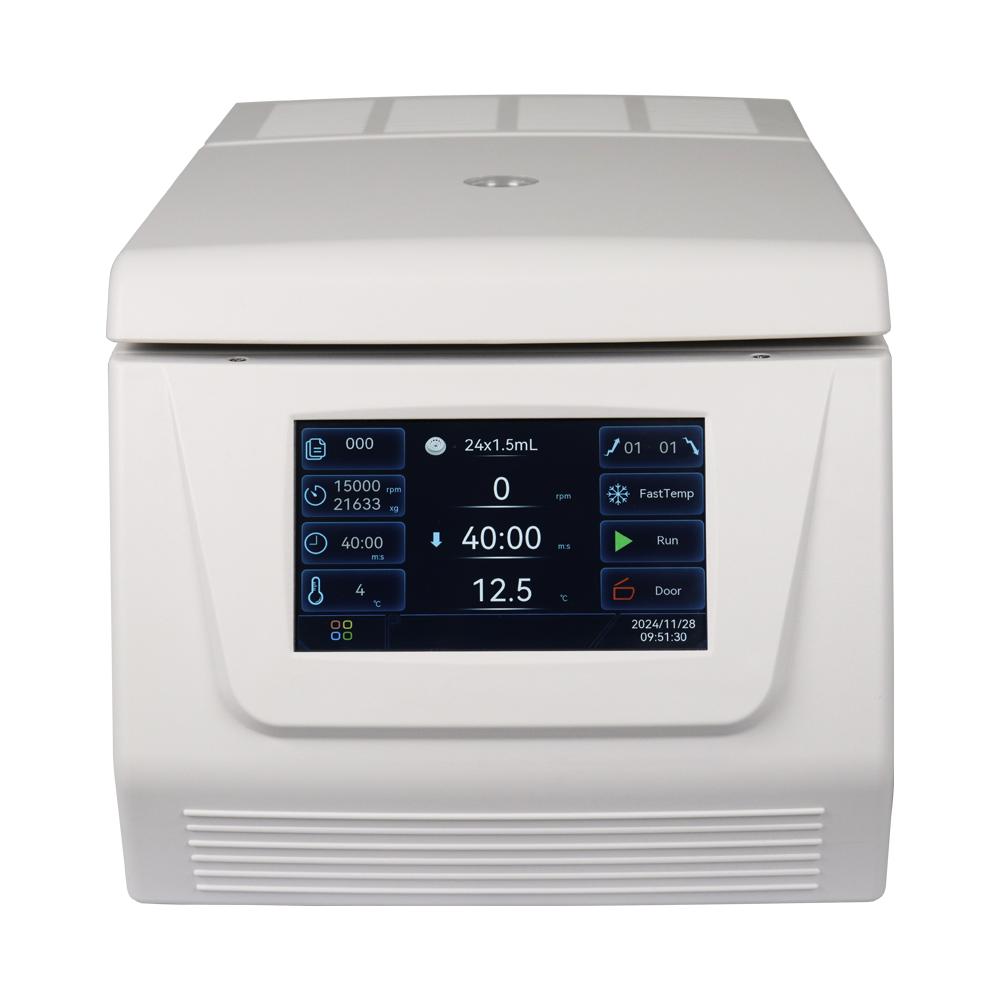

Refrigerated Centrifuge
TGL-1850 / TGL-2150
Features
CFC-free refrigerant, pre cool to 4℃ in 6m.
Rotor automatic identification via RFID.
Imbalance detection with automatic stop.
Variable frequency motor, micro processor control.
7-inch LCD touch screen and self-priming lid lock.
Automatic conversion between RPM and RCF.
Support short spin and continuous centrifugation.
7-stage gradient centrifugation function.
Adjustable accelerating rate, free shutdown.
Up to 1000 programs and running records.
Equipped with a user management system.
Equipped with a dedicated drainage system.
Technical Data
Model: TGL-1850 / TGL-2150.
Max Speed: 14000rpm / 15000rpm.
Max RCF: 18845xg / 21633xg.
Capacity: 24×1.5/2.2ml;12x5ml;4×0.2ml PCR strip.
Temperature Range: -10°C ～ +40°C.
Temperature Accuracy: ±1℃.
Speed Accuracy: ±10rpm.
Time Setting: 1s ～ 99h59m59s.
Noise: ≤56dB(A).
Power Consumption: 400w.
Dimension: 510 x 300 x 280mm.
Weight: 29kg.
